با سلام
می خواستم تاریخ رو از میلادی به شمسی تبدیل کنم
نام هفته رو هم به فارسی بنوسم

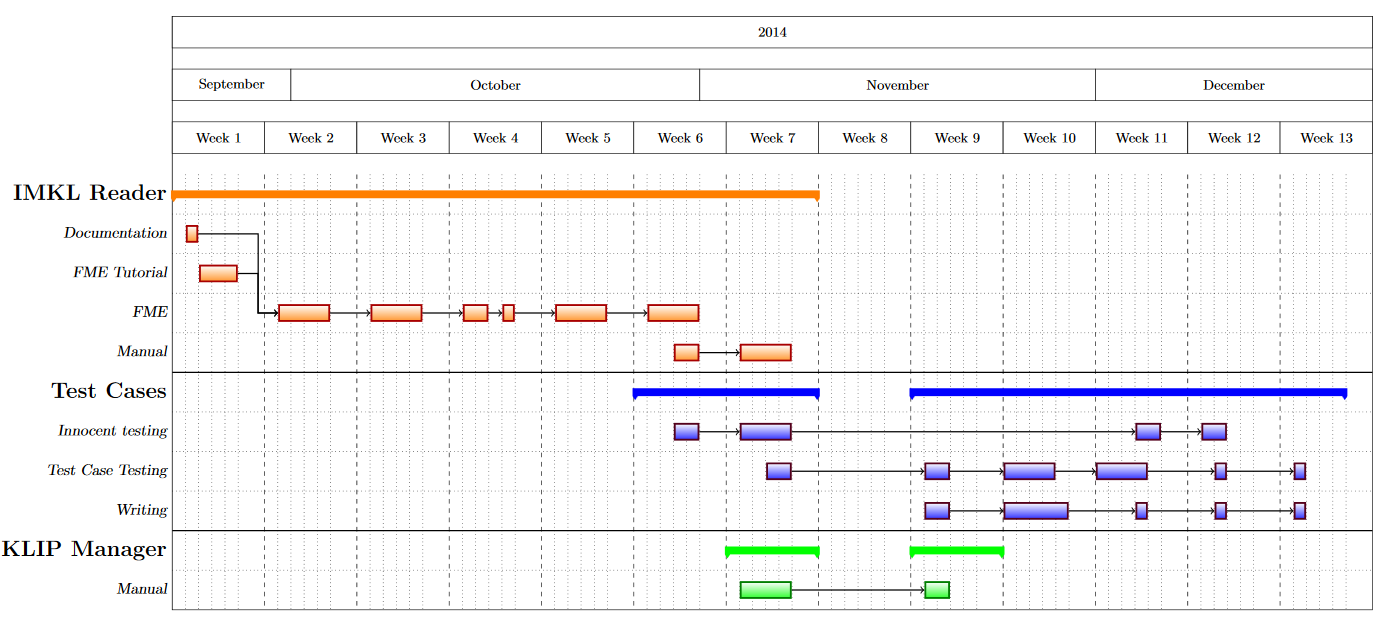

\documentclass{standalone}
\usepackage{color}
\usepackage{tikz}
\usepackage{pgfgantt}
\usepackage{xepersian}
\settextfont[Scale=1.2]{XB Niloofar}
%Used to draw gantt charts, which I will use for the calendar.
%Let's define some awesome new ganttchart elements:
\newganttchartelement{orangebar}{
orangebar/.style={
inner sep=0pt,
draw=red!66!black,
very thick,
top color=white,
bottom color=orange!80
},
orangebar label font=\slshape,
orangebar left shift=.1,
orangebar right shift=-.1
}
\newganttchartelement{bluebar}{
bluebar/.style={
inner sep=0pt,
draw=purple!44!black,
very thick,
top color=white,
bottom color=blue!80
},
bluebar label font=\slshape,
bluebar left shift=.1,
bluebar right shift=-.1
}
\newganttchartelement{greenbar}{
greenbar/.style={
inner sep=0pt,
draw=green!50!black,
very thick,
top color=white,
bottom color=green!80
},
greenbar label font=\slshape,
greenbar left shift=.1,
greenbar right shift=-.1
}
\newganttchartelement{graybar}{
graybar/.style={
inner sep=0pt,
draw=black,
very thick,
top color=white,
bottom color=gray!80
},
graybar label font=\slshape,
graybar left shift=.1,
graybar right shift=-.1
}
\begin{document}
\begin{ganttchart}[
hgrid style/.style={black, dotted},
vgrid={*5{black,dotted}, *1{white, dotted}, *1{black, dashed}},
x unit=3mm,
y unit chart=9mm,
y unit title=12mm,
time slot format=isodate,
group label font=\bfseries \Large,
link/.style={->, thick}
]{1395-09-22}{1396-12-21}
\gantttitlecalendar{year, month=name, week}\\
\ganttgroup[
group/.append style={fill=orange}
]{IMKL Reader}{2014-09-22}{2014-11-9}\\ [grid]
\ganttorangebar[
name=Documentation
]{Documentation}{2014-09-23}{2014-09-23}\\ [grid]
\ganttorangebar[
name=FMETutorial
]{FME Tutorial}{2014-09-24}{2014-09-26}\\ [grid]
\ganttorangebar[
name=FME
]{خوب}{2014-09-30}{2014-10-03}
\ganttlinkedorangebar{}{2014-10-7}{2014-10-10}
\ganttlinkedorangebar{}{2014-10-14}{2014-10-15}
\ganttlinkedorangebar{}{2014-10-17}{2014-10-17}
\ganttlinkedorangebar[name=FMEend]{}{2014-10-21}{2014-10-24}
\ganttlinkedorangebar{}{2014-10-28}{2014-10-31}\\ [grid]
\ganttorangebar[name=Manual]{Manual}{2014-10-30}{2014-10-31}
\ganttlinkedorangebar{}{2014-11-4}{2014-11-7} \ganttnewline[thick, black]
\ganttgroup[
group/.append style={fill=blue}
]{Test Cases}{2014-10-27}{2014-11-9}
\ganttgroup[
group/.append style={fill=blue}
]{}{2014-11-17}{2014-12-19}\\ [grid]
\ganttbluebar{Innocent testing}{2014-10-30}{2014-10-31}
\ganttlinkedbluebar[name=Innocent]{}{2014-11-4}{2014-11-7}
\ganttlinkedbluebar{}{2014-12-4}{2014-12-5}
\ganttlinkedbluebar{}{2014-12-9}{2014-12-10}\\ [grid]
\ganttbluebar{Test Case Testing}{2014-11-6}{2014-11-7}
\ganttlinkedbluebar{}{2014-11-18}{2014-11-19}
\ganttlinkedbluebar{}{2014-11-24}{2014-11-27}
\ganttlinkedbluebar{}{2014-12-1}{2014-12-4}
\ganttlinkedbluebar{}{2014-12-10}{2014-12-10}
\ganttlinkedbluebar{}{2014-12-16}{2014-12-16}\\ [grid]
\ganttbluebar[name=Writing]{Writing}{2014-11-18}{2014-11-19}
\ganttlinkedbluebar{}{2014-11-24}{2014-11-28}
\ganttlinkedbluebar{}{2014-12-4}{2014-12-4}
\ganttlinkedbluebar{}{2014-12-10}{2014-12-10}
\ganttlinkedbluebar{}{2014-12-16}{2014-12-16}\ganttnewline[thick, black]
\ganttgroup[
group/.append style={fill=green}
]{KLIP Manager}{2014-11-3}{2014-11-9}
\ganttgroup[
group/.append style={fill=green}
]{}{2014-11-17}{2014-11-23}\\ [grid]
\ganttgreenbar{Manual}{2014-11-4}{2014-11-7}
\ganttlinkedgreenbar{}{2014-11-18}{2014-11-19}
%Implementing links
\ganttlink[link mid=0.75]{Documentation}{FME}
\ganttlink{FMETutorial}{FME}
\end{ganttchart}
\end{document}
