با سلام

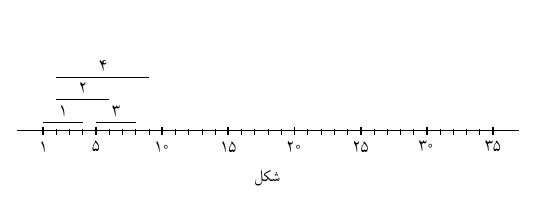

نمونه از شکل خواسته شده در زیر رسم شده است، تکمیل شکل را بر عهده خودتان
\documentclass{article}
\usepackage{tikz}
\usepackage{xepersian}
\usepackage{mathabx,cases}
\settextfont{Yas}
\setdigitfont{Yas}
\begin{document}
\begin{tikzpicture}[y=.2cm, x=.3cm,]
%axis
\draw (-1,0) -- coordinate (x axis mid) (37,0);
%ticks
\foreach \x in {1,2,...,35}
\draw (\x,1pt) -- (\x,-3pt)
node[anchor=north] {};
\foreach \x in {1,5,10,...,35}
\draw[very thick] (\x,2pt) -- (\x,-3pt)
node[anchor=north] {\x};
%labels
\node[below=0.8cm] at (x axis mid) {\rl{شکل}};
\draw[thick] (1,0.9)--(4,0.9)node[midway,sloped,right,above]{$1$};
%lines
\draw[thick] (5,0.9)--(8,0.9)node[midway,sloped,right,above]{$3$};
\draw[thick] (2,3.5)--(6,3.5)node[midway,sloped,right,above]{$2$};
\draw[thick] (2,6)--(9,6)node[midway,sloped,right,above]{$4$};
\end{tikzpicture}
\end{document}
